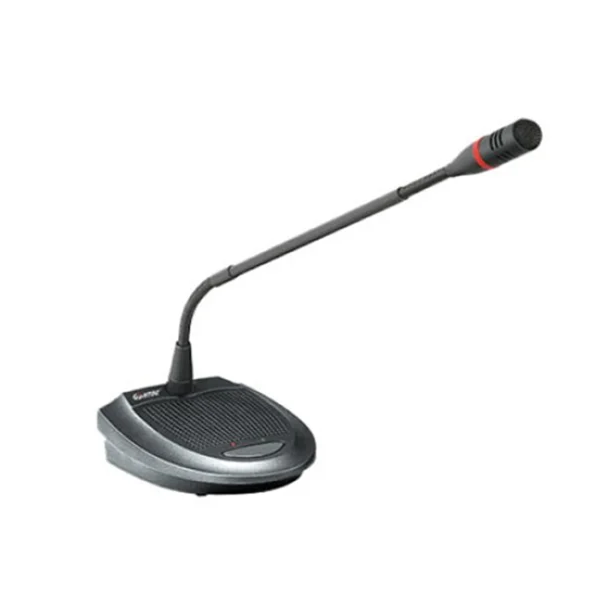

HTDZ HT-7500D Delegate Unit Digital Conference System
Roll over image to zoom in
| Model | HTDZ HT-7500D Delegate Unit Digital Conference System |
| Power Source: | 35V DC, 30mA |
| Frequency response: | 40Hz- 16kHz |
| Output (Internal Speaker): | 130f1, 200mW |
| Rated impedance: | 1.8kΩ |
| Rated Sensitivity: | -37dB (1kHz, 0dB=1V//Pa) |
| Finish: | Case-ABS resin, black; |
| Body Panel: | ABS resin, silver metallic |
| Connection | The unit uses 8-wire “T” type connection |
| Appearance size: | 165 x 135 x 60 mm |
| Net weight: | 0.8kg |
| Power | The unit is powered by the system host. |
| Switch | With Speaking Button & indicator light, Can Freely Control the Speaking Status |
| Connection | 8P-DIN socket for system “T” connection, and can be customized according to the actual situation of the venue. |
| Priority | Chairman with priority button |
